AC Axial Fans

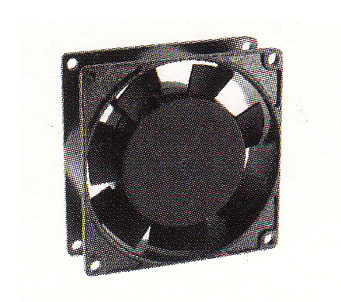

80x80x25mm

Modal No. Bearing
Sleeve
Ball
Voltage
V
Frequency
Hz
Current
A
Input Power
W
Speed
RPM
Airflow
CFM
Static Pressure
mm H20
Noise
dB(A)
Box
Pkg.
Pcs.
28025 Al M W
115 50/60 0.12/0.10 12/11 2400/3000 18/22 3.0/3.7 29/30 40
28025 A2 M W
230 50/60 0.07/0.05 13/11 2400/3000 22/25 3.2/4.5 29/30 40

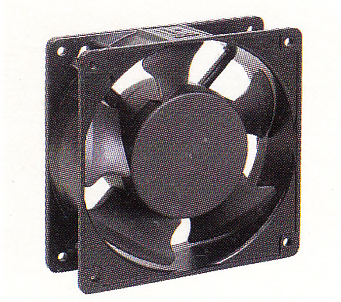

120x120x38mm

Modal No. Bearing
Sleeve
Ball
Voltage
V
Frequency
Hz
Current
A
Input Power
W
Speed
RPM
Airflow
CFM
Static Pressure
mm H20
Noise
dB(A)
Box
Pkg.
Pcs.
22038 Al M T/W
115 50/60 0.21/0.18 18/17 2550/2850 80/105 6.4/7.6 43/48 40
22038 B1 M T/W
115 50/60 0.21/0.18 18/17 2600/2900 85/110 6.4/7.6 43/48 40
22038 A2 M T/W
230 50/60 0.12/0.11 22/20 2550/2850 80/105 6.4/7.6 43/48 40
22038 B2 M T/W
230 50/60 0.12/0.11 22/20 2600/2900 85/110 6.4/7.6 43/48 40
22038 A24 M T
24 50/60 0.88/0.80 18/17 2550/2850 80/105 6.4/7.6 43/48 40
22038 B24 M T
24 50/60 0.88/0.80 18/17 2600/2900 85/110 6.4/7.6 43/48 40

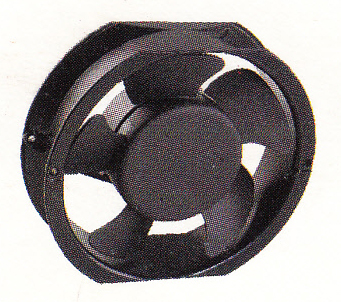

∅172x150x51mm

Modal No. Bearing
Sleeve
Ball
Voltage
V
Frequency
Hz
Current
A
Input Power
W
Speed
RPM
Airflow
CFM
Static Pressure
mm H20
Noise
dB(A)
Box
Pkg.
Pcs.
21725 Al M W
115 50/60 0.38/0.37 30/29 2500/2800 175/180 12.2/9.7 52/55 20
21725 B1 MW
115 50/60 0.38/0.37 30/29 2600/2900 180/200 12.2/9.7 52/55 20
21725 A2 M W
230 50/60 0.23/0.20 37/35 2500/2800 175/180 12.2/9.7 52/55 20
21725 B2 M W
230 50/60 0.23/0.20 37/35 2600/2900 180/200 12.2/9.7 52/55 20
Fan with AC to DC Converter
21725 B2 M W X
230 50/60 0.147 20 3300 280 12 52 20
