HSK-K Cable Glands Plastic / Metal
| Material |
Polyamide V0 according to UL 94 |
| Seal |
Buna-N |
| Protection |
IP 68 – 10 bar / IP 69K (NEMA 6 - 150 PSIG)
with additional O-Ring |
| Operating-Temperature |
-40°C – 100 °C (-40°F - 212°F) |
| Colors: |
grey (RAL 7035), black (RAL 9005), blue (RAL 5012) for the intrinsic safety "i"
|

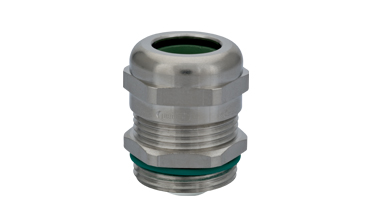

HSK-M / HSK-M-PVDF
| Material |
Nickel plated brass |
| Clamping insert |
Polyamide / PVDF |
| Seal |
Buna-N / FKM |
| O - Ring |
Buna-N / FKM |
| Protection |
IP 68 – 10 bar / IP 69K ( NEMA 6 - 150 PSIG) |
| Operating Temperature |
-40°C - 100°C (-40°F - 212°F) (PA)
-35°C - 150°C (-31°F - 302°F) (PVDF)
|
| Colors: |
RAL 7035 grey
RAL 9005 black
RAL 5012 blue
|
V-N-FS Pome Plug
| Material |
Polyamide |
| Protection |
IP 54 |
| Operating Temperature |
-40°C - 100°C (-40°F - 212°F) |
| Colors |
grey (RAL 7035), black (RAL 9005) |

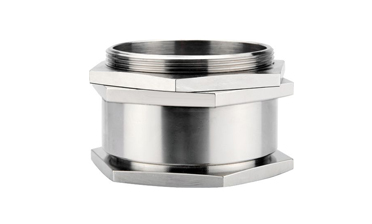

Single Compression Cable Gland
| Material |
Brass (IS 319) - Standard |
| Finish |
Nickel Plated - Standard ( Natural/tin/Cadmium/Chrome also available ) |
| Threads |
BSC Standard (NPT / ET / BSP / PG / Matric also available) |
| Sealing Ring |
Neoprene Rubber / Natural Rubber |
| Protection Class |
IP-60 |
| Application |
Generally use for Outdoor / Indoor for Armoured and unarmoured Cable |

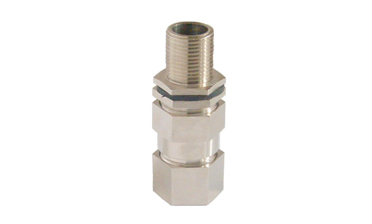

Double Compression - Weather Proof Cable Gland
| Material |
Brass (IS 319) - Standard |
| Finish |
Nickel Plated - Standard (Natural/Tin/Cadmium/Chrome also available) |
| Threads |
BSC Standard (NPT/ET/BSP/PG/Matric also available) |
| Sealing Ring |
Neoprene Rubber / Natural Rubber |
| Ref. Standard |
Weatherproof - IS: 12063-1987 |
| Protection Class |
IP-65 as per 13346-2004 |
| Application |
Waterproof - Genrally use for outdoor / indoor for armoured and Unamoured Cable. |

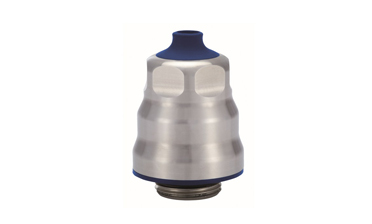

HSK-INOX-HD Stainless Steel Cable Gland
| Material HD-enclosure |
1.4404 / AISI 316 L |
| Sealing HD-enclosure |
VMQ (Silicone), blue (similar RAL 5017) |
| Protection |
IP 68 |
| Operating Temperature |
-40°C to +120°C (-40°F to +248°F) |
